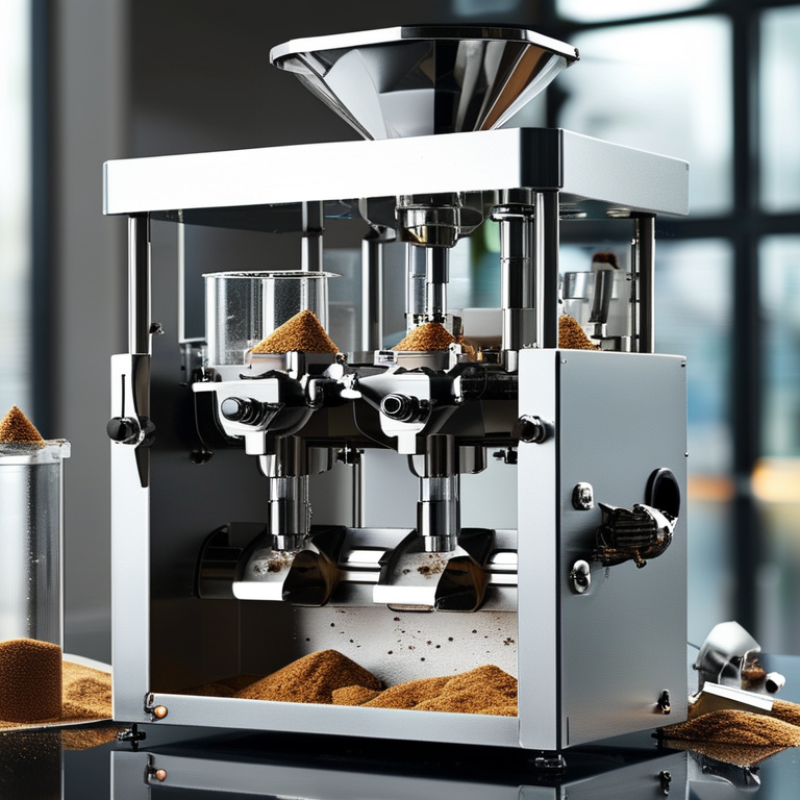

How to Choose a Granulator Machine for Pharmaceuticals?

Choosing a granulator machine for pharmaceuticals is not a simple equipment purchase. It is a decision about blend uniformity, tablet strength, drying control, cleaning time, and batch consistency. A machine may look impressive on a showroom floor, yet perform poorly with a sticky, heat-sensitive formulation.

The global pharmaceutical manufacturing equipment market continues to expand, according to Grand View Research’s industry assessments. However, market growth does not guarantee the right machine for every plant. The FDA’s Process Validation guidance requires documented scientific evidence that processes consistently deliver quality products. That principle should guide granulator selection. Buyers should compare high-shear, fluid-bed, and dry granulation systems against material properties, production volume, containment needs, and cleaning validation. Small details matter. Check impeller speed ranges, spray-nozzle access, filter design, discharge height, and the dead zones where powder can hide.

Dilip M. Parikh, editor of Handbook of Pharmaceutical Granulation Technology, describes granulation as “a size-enlargement process.” That short statement has practical weight. Particle size affects flow, compression, dissolution, and packaging performance. A suitable granulator machine for pharmaceuticals should therefore support measurable critical quality attributes, not merely produce attractive granules. ICH Q8(R2) also encourages a science-based understanding of process variables and product quality.

There is no perfect machine. That is worth admitting. A faster unit may increase heat exposure. A closed system may complicate maintenance. The strongest choice comes from trials, risk assessment, supplier data, and operator experience—not from brochures alone.

Table of Contents [Hide]

1 What Is a Pharmaceutical Granulator and What Does It Do?

2 Which Granulation Method Fits the Pharmaceutical Formulation?

3 How to Match Granulator Capacity with Production Requirements?

4 Which Machine Features Ensure Quality, Safety, and Compliance?

5 How to Compare Cleaning, Maintenance, Automation, and Total Cost?

What Is a Pharmaceutical Granulator and What Does It Do?

A pharmaceutical granulator converts fine powders into larger, more uniform granules. This process improves powder flow, reduces dust, and supports consistent tablet compression. It can also help active ingredients and excipients distribute more evenly. The machine does not simply mix materials. It controls particle size, moisture, density, and structure.

A wet granulator blends powders with a measured binder solution. High-speed impellers create a damp mass, while cutting tools break oversized lumps. The material then passes through a screen or enters a drying system. Dry granulators use pressure instead of liquid. They compact powders into ribbons or slugs, then mill them into granules. Each method suits different materials.

Selection requires more than checking production capacity. Consider the formulation’s moisture sensitivity, required batch size, cleaning method, and desired granule range. Product-contact parts should support hygienic operation and reliable inspection. Operators should also review mixing time, binder control, temperature monitoring, and data recording. Small changes matter.

A common mistake is choosing a machine only by motor power. Excessive shear may generate heat or damage fragile particles. Insufficient force may leave weak granules that break during transfer. In practice, trials are valuable because laboratory behavior may differ from production behavior. No granulator is perfect. Its performance depends on formulation, process settings, maintenance, and operator judgment.

Which Granulation Method Fits the Pharmaceutical Formulation?

Choosing a granulator machine starts with the formulation, not the equipment catalogue. A powder with poor flow, low bulk density, or uneven drug distribution may need wet granulation. This method improves particle bonding and tablet consistency. However, moisture and drying heat can damage sensitive ingredients. A high-shear granulator suits cohesive blends, while a fluid-bed system can combine granulation and drying. The formulation decides the better fit.

Moisture-sensitive powders often require dry granulation through roller compaction. This process uses no liquid binder and creates ribbons for milling. It can protect unstable ingredients, but excessive compaction may produce hard granules with poor tablet dissolution. Direct compression remains practical when powders already show strong flow and compressibility. It uses fewer processing steps. Still, small differences in particle size can cause segregation during transfer.

In development work, measure flow rate, compressibility, moisture content, granule size, and tablet strength. Watch the blend after every major step. A narrow particle-size range may improve feeding, but it is not always ideal for dissolution. Equipment should offer controllable shear, binder addition, airflow, temperature, and cleaning access. GMP design also requires traceable settings and repeatable results. A pilot trial may challenge early assumptions. That is useful. No granulation method is perfect. The best choice balances product stability, process control, scale-up behavior, operator safety, and realistic manufacturing costs.

How to Match Granulator Capacity with Production Requirements?

Choosing a pharmaceutical granulator starts with production data, not a catalogue size. Match the machine to batch weight, material density, and required granulation time.

Calculate the working volume from the real formulation, including excipients and liquid addition. Bulk density can change sharply after wetting. A powder that looks manageable may occupy more space during charging. Keep practical fill levels below the chamber’s maximum volume. Many facilities allow around 20% to 30% spare capacity for mixing movement and process variation. This margin is not a universal rule. It should be confirmed through trials and supplier documentation.

Production speed also depends on feeding, discharge, drying, and cleaning. A high-capacity granulator cannot improve a line limited by slow liquid dosing. Review the complete cycle, including loading and cleaning time. If the target is 500 kilograms per shift, calculate usable batches rather than theoretical output. Consider viscosity, impeller load, and motor torque during the wet stage. These details often reveal the true capacity limit.

I have seen teams select equipment from average batch weight alone. That approach can create poor mixing or unnecessary idle space. A pilot run with representative materials gives stronger evidence. Record power consumption, endpoint consistency, discharge losses, and operator handling time. The data may challenge the original calculation. That is useful. Capacity selection should also allow future formulations, but oversized equipment can reduce process control and increase cleaning effort. Validate the final choice with process engineers, quality personnel, and documented performance tests.

How to Choose a Granulator Machine for Pharmaceuticals?

How to Match Granulator Capacity with Production Requirements?

How to read the chart: The required batch load is calculated from the annual production target, assuming 50 production weeks per year and the stated number of batches per week. The recommended granulator working capacity adds approximately 20% headroom to accommodate normal process variation, material loss, and filling limitations. Select a machine whose effective working capacity is close to the recommended value rather than relying only on the maximum vessel volume.

Which Machine Features Ensure Quality, Safety, and Compliance?

Choosing a pharmaceutical granulator means examining quality, safety, and compliance features together. The machine should provide closed processing, smooth product-contact surfaces, and validated cleaning access. Crevices around seals, screens, or discharge valves can retain powder and create cross-contamination risks. I would inspect these areas with a flashlight, not rely only on supplier drawings.

Process control is equally important. A reliable granulator should record impeller speed, torque, temperature, wetting time, and batch identity automatically. The FDA’s Process Validation Guidance describes continued process verification as an ongoing control activity, not a one-time qualification exercise. Therefore, audit trails must prevent silent data changes. Alarm histories should also remain readable after production ends. Small details matter.

Safety features deserve practical testing. Interlocked covers, emergency stops, dust-tight connections, and grounding points protect operators during charging and discharge. The European Agency for Safety and Health at Work reports that combustible dust can create serious explosion hazards when ignition sources and suspended particles combine. In practice, request documented dust-hazard assessments and verify that extraction performance matches the formulation. Do not accept “easy to clean” without evidence. The ISPE Baseline Guide on oral solid dosage manufacturing emphasizes hygienic design, containment, and controlled material flow. Yet equipment selection is never perfect. A larger screen may improve throughput but increase heat, noise, or cleaning time. Pilot trials, measurable acceptance criteria, and review by quality, engineering, and production teams are essential.

How to Compare Cleaning, Maintenance, Automation, and Total Cost?

Choosing a pharmaceutical granulator requires more than comparing output rates. Cleaning, maintenance, automation, and total cost can determine daily reliability. During equipment evaluations, inspect the product-contact areas directly. Look inside the machine.

A suitable granulator should have smooth surfaces, accessible chambers, and few hidden corners. Tool-free screens can shorten changeovers, but operators still need clear cleaning instructions. Ask how cleaning is verified, dried, and documented. A machine that looks simple may contain difficult seals or narrow passages. That matters. Maintenance also deserves practical testing. Check bearing access, lubrication points, spare-part availability, and expected replacement time. Ask whether technicians can reach critical components without removing half the machine.

Automation should reduce variation, not create another problem. Useful features include recipe control, interlocks, speed monitoring, and recorded operating data. However, excessive automation can increase training needs and repair costs. Review the interface with real operators, not only engineers. Can they identify an alarm quickly? Can supervisors trace a batch adjustment?

Total cost includes installation, utilities, cleaning labor, validation support, spare parts, and downtime. A lower purchase price may become expensive after repeated stoppages. Compare these costs over five to ten years. Request realistic energy and maintenance estimates, not attractive assumptions. One weakness remains easy to miss: suppliers may describe maximum capacity under ideal conditions. Test representative materials and cleaning routines before approval. Perfect calculations are rare, so document every assumption and challenge the optimistic ones.
